PANOS III downlight

A downlight for every situation.

Recessed, surface-mounted or pendant? The PANOS III Downlight opens up new perspectives for sophisticated lighting design — with excellent light quality, modular construction and intelligent building integration. Whether you're lighting an office environment, sales area or cultural space – experience maximum flexibility with the highest visual comfort.

A stylised factory with two leaves emerging from the chimney.

Sustainable production

Made in Germany

Two circular arrows represent an update.

Maximum flexibility

Diverse installation variants

High visual comfort

Optimised UGR19 glare control

Three sliding buttons are surrounded by sound waves.

Innovative sensor technology

Intelligent Integration

The PANOS III luminaires on the ceiling of a modern room provide clear, glare-free lighting for elegant and functional lighting design.

The PANOS III luminaire provides uniform, glare-free illumination in a minimalist space through its elegant design.

Image of a built-in PANOS III luminaire with a hand visible below

PANOS III: The new generation of modular lighting

PANOS III offers high-quality white LED lighting with excellent colour rendering (CRI > 90) and saturated red tones (R9 > 50) — ideal for natural skin tones and demanding applications. Optimised reflector technology delivers precise light direction, while a UGR < 19 guarantees glare-free vision and maximum visual comfort. With a luminous efficacy of up to 159 lm/W, PANOS III also excels when it comes energy efficiency and cost-effectiveness.

The PANOS III lighting system in modern ceilings provides glare-free, uniform lighting for a simple, elegant room ambiance.

Light that designs spaces.

When architecture transcends mere function and spaces gain their identity through light, PANOS III achieves the perfect harmony of aesthetics and technology. The consistent design language integrates seamlessly into any concept, while brilliant colour rendering and reflectors that you can freely choose from do justice to every detail. Modularly designed and made for the future – PANOS III is a sustainable step forward in intelligent lighting.

Introducing

PANOS III Deco

Make a statement in colour.

PANOS III deco creates expressive accents. Whether in lounges, meeting rooms, collaborative areas or reception spaces: distinctive rings and cylinders enable individual lighting compositions – from representative to residential.

3 shapes. 6 colours.

With 16 standard articles, numerous combinations emerge: PANOS III deco transforms functional spaces into inspiring environments — with a welcoming atmosphere and tangible quality of stay.

The picture shows Chris Redfern, the legendary designer of the PANOS luminaire from Zumtobel.

PANOS III takes centre stage in innovative lighting solutions, installed in the ceiling or elsewhere, while maintaining its pantheon-like properties and design.

Chris Redfern, Designer

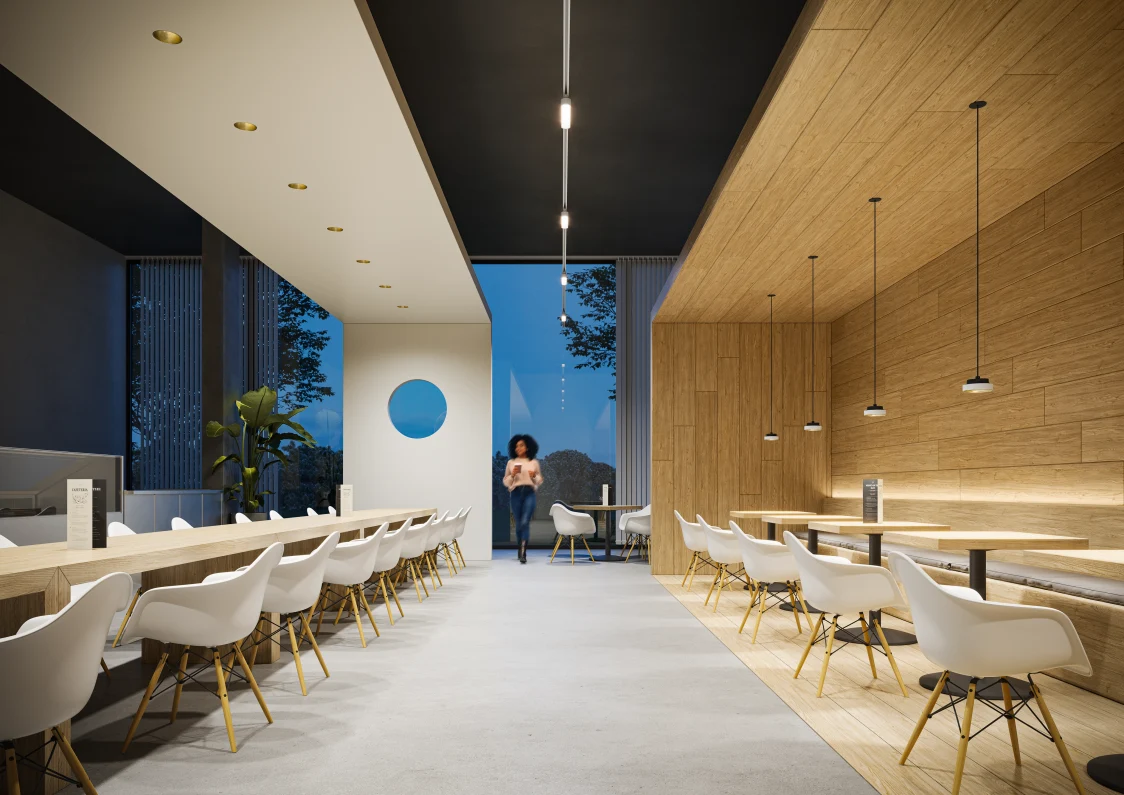

Linear Version of the PANOS III Luminaire

Linear shape, rounded ends

The light line in the PANOS III look

Architectural design, flexible integration: PANOS III linear opens up new design possibilities — from offices to education, from healthcare to nursing. The light line structures spaces, creates trendsetting dynamics or acts as a deliberate focal point. Standard with wide-beam light distribution, optionally glare-free for workplaces. Flexibly integrated into different ceilings and infrastructures. PANOS III linear — a harmonious addition that stays in the family.

The PANOS III ceiling luminaire in an elegant, dark-green design provides glare-free light, perfect for giving modern interiors a stylish ambiance.

Versatile installation options for maximum flexibility

No results found

Modular LED technology for every need

The PANOS III downlight sets new standards in energy-efficient lighting. This innovative lighting solution is ideally suited for office buildings, education buildings, retail spaces, and museums. With high-quality LED technology, modular construction, and intelligent sensors, it creates lighting concepts that are perfectly attuned.

Be inspired

Discover more projects with PANOS or similar downlights.

Downloads

Panos III Product Brochure (DE)

5.59 MB

Panos III Product Brochure (EN)

5.58 MB

Panos III Product Brochure (FR)

5.59 MB

Panos III Product Brochure (IT)

5.58 MB

Panos III Product Brochure (NL)

5.59 MB

Questions about the PANOS III luminaire

Our modular LED technology accommodates two different reflector variants. The low reflectors stand out with their shallow mounting depth – just 70 mm for R150 and 75 mm for R200. This variant is suitable for installation in ceilings with limited space. The high reflectors, on the other hand, can enhance well-being: they offer exceptional visual comfort with a UGR value of 19. The choice between both variants depends on your individual project requirements. Low reflectors save space, while high reflectors offer excellent light quality for demanding architectural lighting.

PANOS III series sustainable lighting adapts to your environment. The R100 variant delivers luminous fluxes between 1000 and 2500 lumens. For the R150 version, you can expect 1000 to 3000 lumens. The R200 variant boasts an impressive luminous flux ranging from 1000 to 5000 lumens. This variety allows for precise adaptation to various room concepts – from subtle general lighting to powerful lighting solutions for professional settings.

The energy-efficient PANOS III series features IP54 protection from below when installed in enclosed ceilings. An optional IP54 cover provides additional protection for the reflector interior. This design makes the recessed luminaire ideal for demanding environments where you need to protect against moisture or foreign objects. The robust construction ensures reliable lighting even in high-traffic areas.

Yes, for architectural lighting with PANOS III R150 and R200, we offer innovative acoustic elements. These have a diameter of one metre and are available in 19 stylish colour variations. They reduce unwanted background noise and create a pleasant atmosphere in office spaces or public areas. In addition to the standard designs, we would be happy to develop tailored solutions for your specific requirements.

Yes, the PANOS III series supports intelligent lighting control even in emergencies. The standard models are DC-compatible and integrate seamlessly into emergency lighting control systems pursuant to standard 60598-2-2:2023. With the E3 and E3D single-battery solutions, we also offer autonomous emergency lighting systems. This versatility makes PANOS III a reliable solution for modern smart buildings – from basic lighting to security concepts.
